Vitrified bond diamond grinding wheels for PDC/PCBN/CVD tools are mainly used for machining PDC cutting tools, PCBN cutting tools, CVD tools, milling cutter, reamer, drill and regrinding, etc.
Name: PDC grinding wheel
Type: 6A2,11A2,12A2
MOQ: 2pcs
Send us email
forever@forever-superabrasives.comCall us
8613663848776PDC and PCBN cutting tools have the highest quality requirements, and precise geometries and minimal chipping are the essential quality requirements.
Vitrified bond diamond grinding wheels are mainly used for machining PDC cutting tools, PCBN cutting tools, CVD tools, milling cutter, reamer, carbide cutting tools, ceramic cutting tools, drilling and regrinding etc.. Vitrified bond diamond grinding wheels are suitable for rough grinding, semi-fine grinding and fine grinding in the process of tool production.

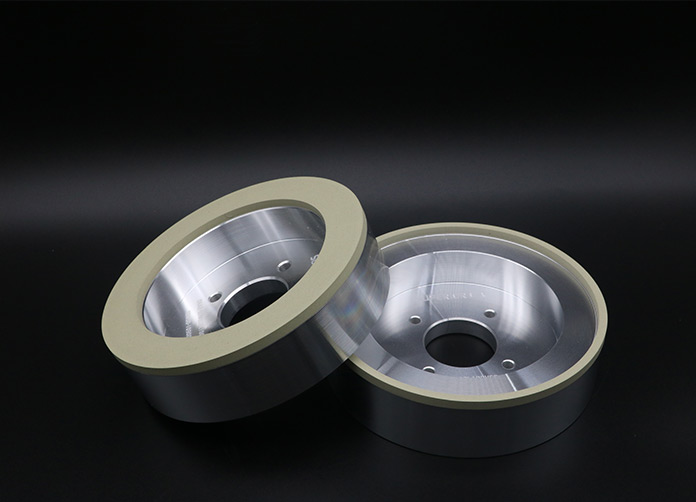

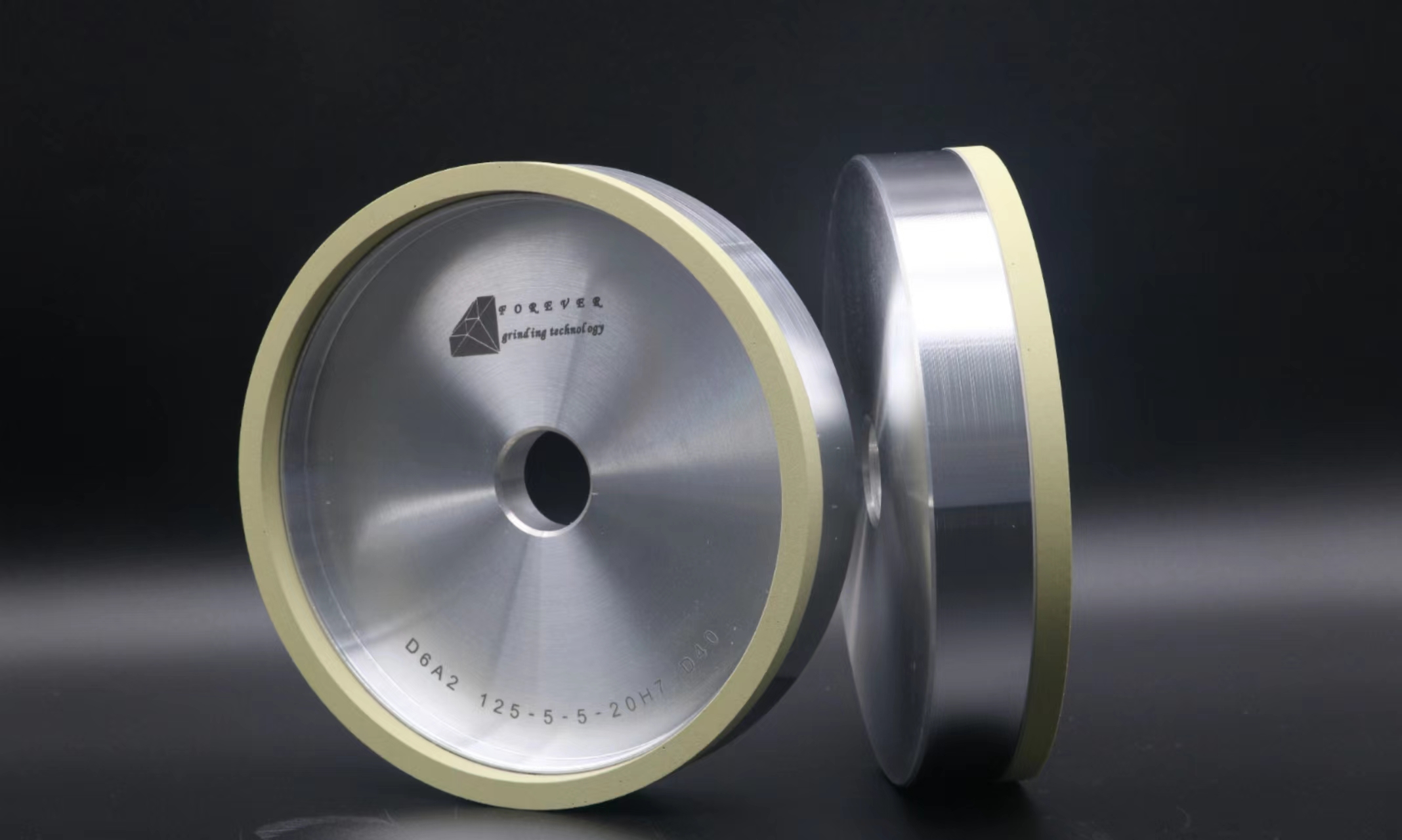

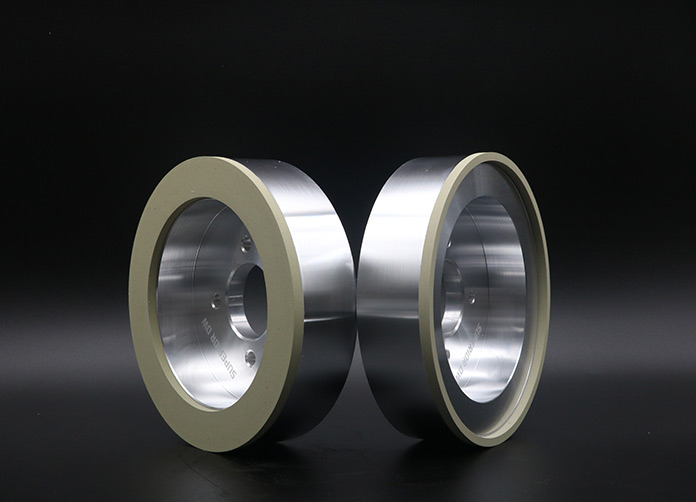

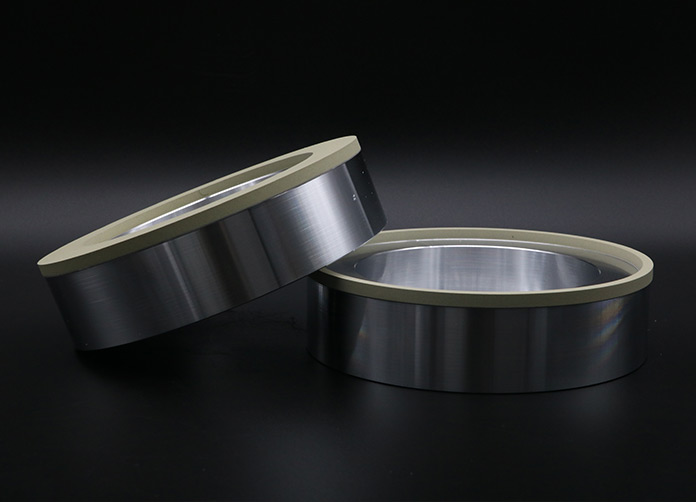

6A2 vitrified bond diamond grinding wheels
|
D(mm) |
T(mm) |
H(mm) |
W(mm) |
X(mm) |
|
100 |
40 |
20/32/40 |
5/12/20 |
10 |
|
125 |
40 |
32/40 |
10/15/20 |
10 |
|
150 |
40 |
32/40 |
3/5/10/15/20 |
10 |
|
Grit: 140#~5000#, According to customer's requirements. |
||||
